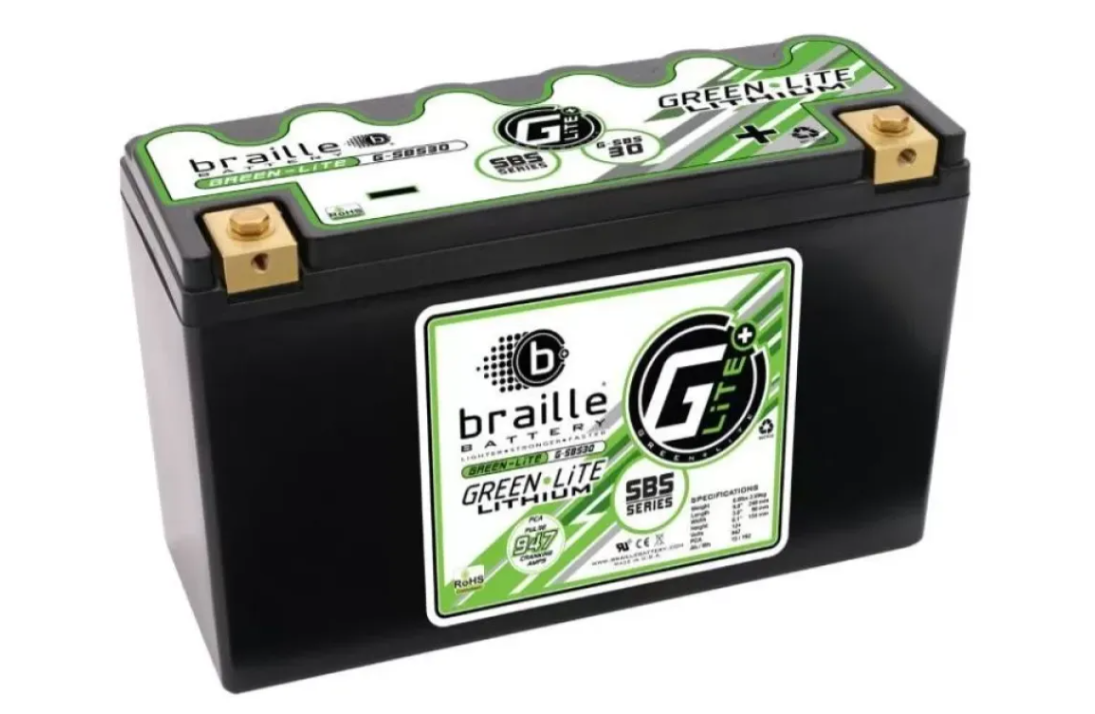

Braille G-SBS30S Lithium 12 Volt Battery 20Ah 8.0 Lbs Right Terminal for Motorsports

Braille G-SBS30S Lithium 12 Volt Battery 20Ah 8.0 Lbs Right Terminal for Motorsports

Regular price $825.54 USD
Regular price Sale price $825.54 USD
Sale Sold out

Braille Battery G-SBS30S Lithium GREEN-LiTE Motorsports 12 Volt Battery

The G-SBS30S Lithium GREEN-LiTE Motorsports battery is engineered for automotive applications where weight savings and performance are critical. Weighing in at just 8.0 lbs, this battery offers a significant reduction compared to traditional lead-acid options, making it an ideal choice for motorsports and performance builds.

Key Features

  • High cranking amp output per kg for superior starting capabilities
  • Recharge up to 5 times faster than conventional lead-acid batteries
  • Suitable for "Total Loss" applications, where no alternator is present
  • Service life extends 3-5 times longer than lead-acid batteries
  • Designed to withstand high shock and vibration environments
  • Offers up to 2/3 weight reduction while maintaining equivalent cranking performance

Specifications

  • Physical Dimensions:
    • Chemistry: LFP
    • Length: 9.8 inches
    • Width: 3.8 inches
    • Height: 6.1 inches
    • Weight: 8.0 lbs
    • Terminal Type: Brass terminal block with M6 bolt
    • Polarity: Right
  • Technical Specifications:
    • 5S PCA: 1197
    • 10s PDC: 1000
    • Voltage: 12V
    • Capacity: 20.0 Ah
    • Energy Capacity: 256 Wh
    • Continuous Discharge Current: 400 A
    • Charging Temperature: 0C to 50C
    • Discharge Temperature Range: -20C to +60C
    • Storage Temperature: -20C to +60C
  • Charging Details:
    • Recharge Voltage: 14.4V - 14.6V
    • Maintenance Charge Voltage: 13.8V

Important Notes

  • All Braille batteries must be shipped using standard ground shipping; expedited options are not available.
  • These batteries are built to order and are non-returnable.
