Braille 12 Volt Lithium Battery 25Ah 8.25 lbs Right Polarity for Motorsports Applications

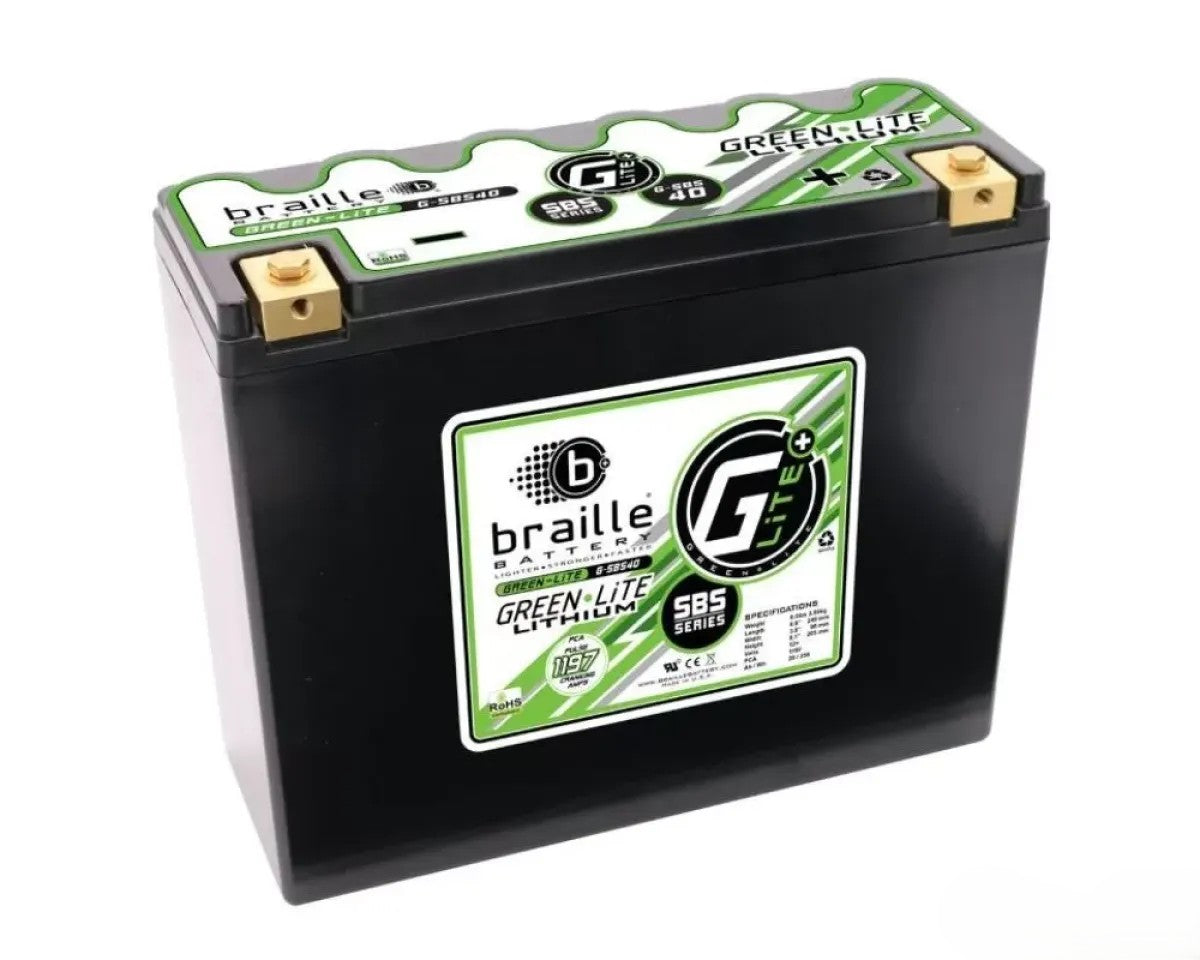

Braille Battery G-SBS40S Lithium GREEN-LiTE 12 Volt Battery

Weighing in at just 8.25 lbs, the G-SBS40S Lithium GREEN-LiTE Motorsports 12 Volt Battery is engineered for performance and efficiency. This battery is a significant upgrade over traditional lead-acid options, offering reduced weight, enhanced power output, and an impressive lifespan that can last up to five times longer than standard batteries.

Key Features

• High cranking amp output per kilogram for superior starting capabilities.
• Recharge times are up to five times faster than lead-acid batteries.
• Compatible with "Total Loss" applications, eliminating the need for an alternator.
• Service life is three to five times longer compared to lead-acid batteries.
• Designed to withstand high shock and vibration, making it ideal for motorsports.
• Offers up to two-thirds weight reduction while maintaining equivalent cranking performance.

Specifications

• Physical:
  • Chemistry: LFP
  • Length: 9.8 inches
  • Width: 3.8 inches
  • Height: 8.1 inches
  • Weight: 8.5 lbs
  • Terminal Type: Brass terminal block with M6 bolt
  • Polarity: Right
• Technical:
  • 5S PCA: 1420
  • 10s PDC: 1250
  • Voltage: 12V
  • Capacity: 25.0 Ah
  • Capacity: 320 Wh
  • Continuous Discharge Current: 500 A
  • Charging Temperature: 0C to 50C
  • Discharge Temperature Range: -20C to +60C
  • Storage Temperature: -20C to +60C
• Charging:
  • Recharge Voltage: 14.4V - 14.6V
  • Maintenance Charge Voltage: 13.8V

Important Notes

• All Braille batteries must be shipped using standard ground shipping; expedited options are not available.
• These batteries are built to order and are non-returnable.
